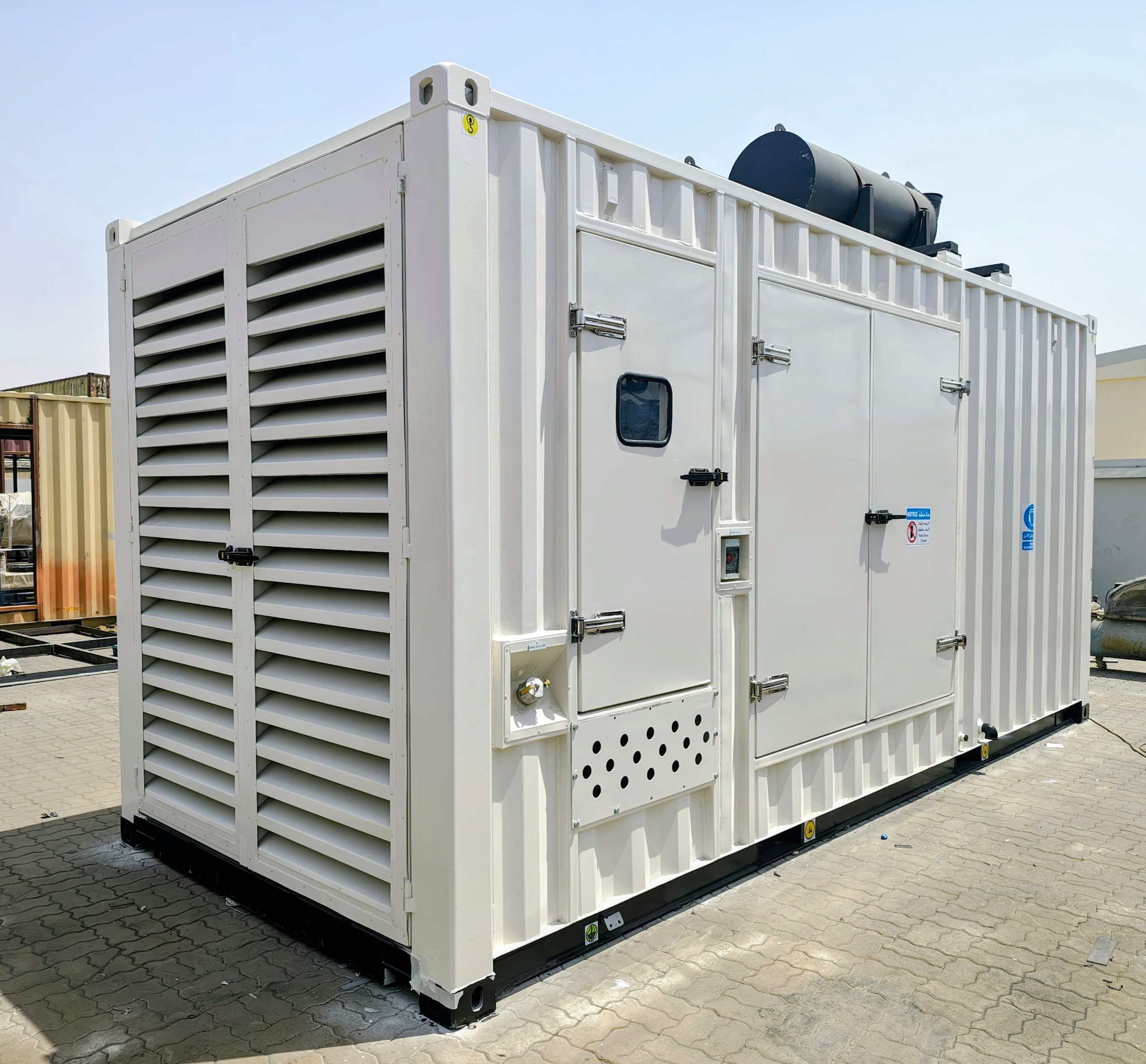

Packaging of a 1000 KVA Genset into a 20Ft modified High Cube ISO container, achieving a noise level of approximately 85 dB(A) @ 3 meters in a free field environment at 75% load.
Key Features
Acoustic Insulation: Internal walls lined with 75 mm thick rock wool (48 kg/m³ density), covered with black glass tissue and 0.7 mm perforated GI sheets to ensure effective noise attenuation.
Fuel System:
- 1000L capacity day fuel tank installed inside the container
- Mechanical fuel gauge , Manual fuel fill connection with camlock coupling
Ventilation & Airflow:

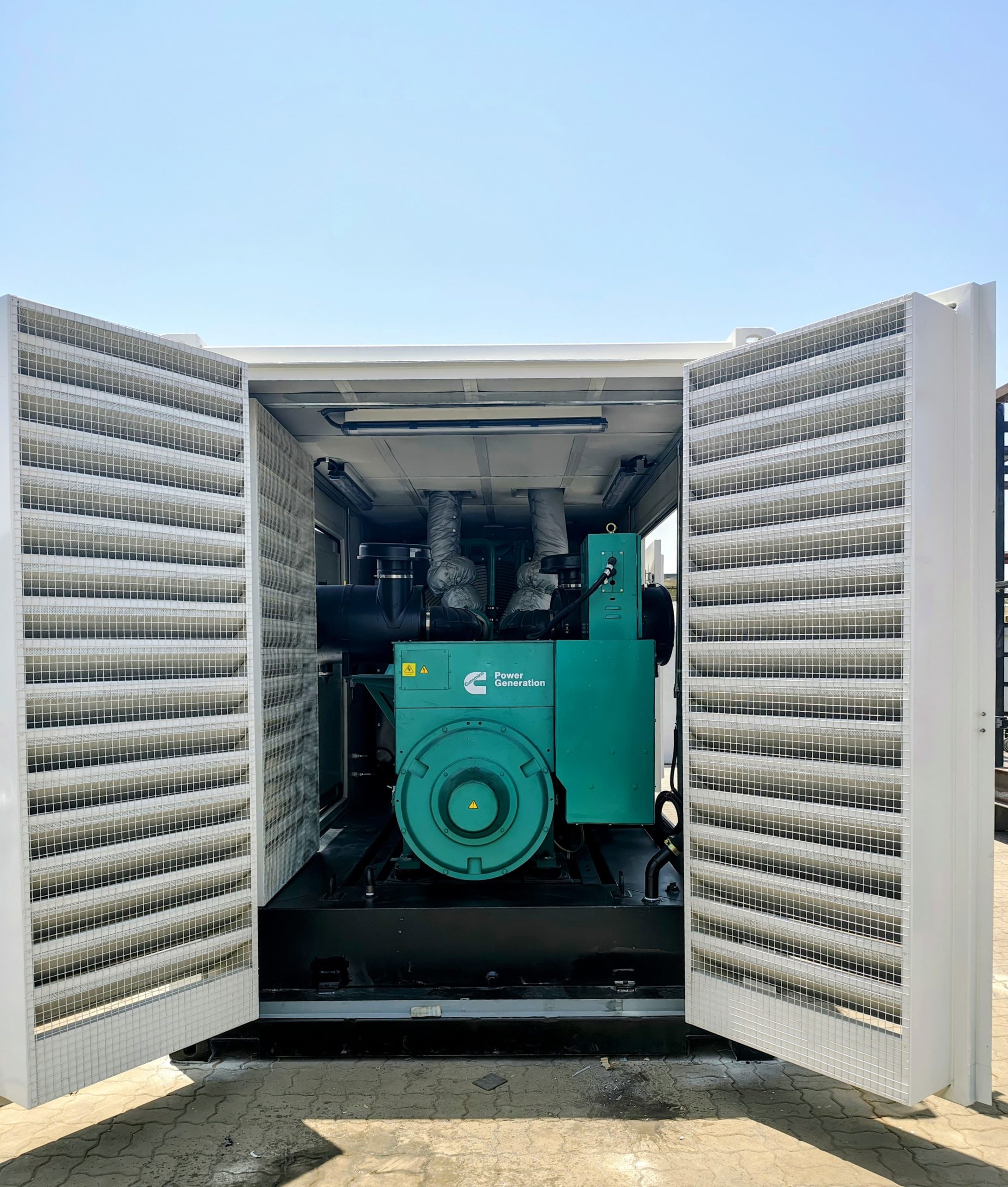

- Acoustic louvers for air suction

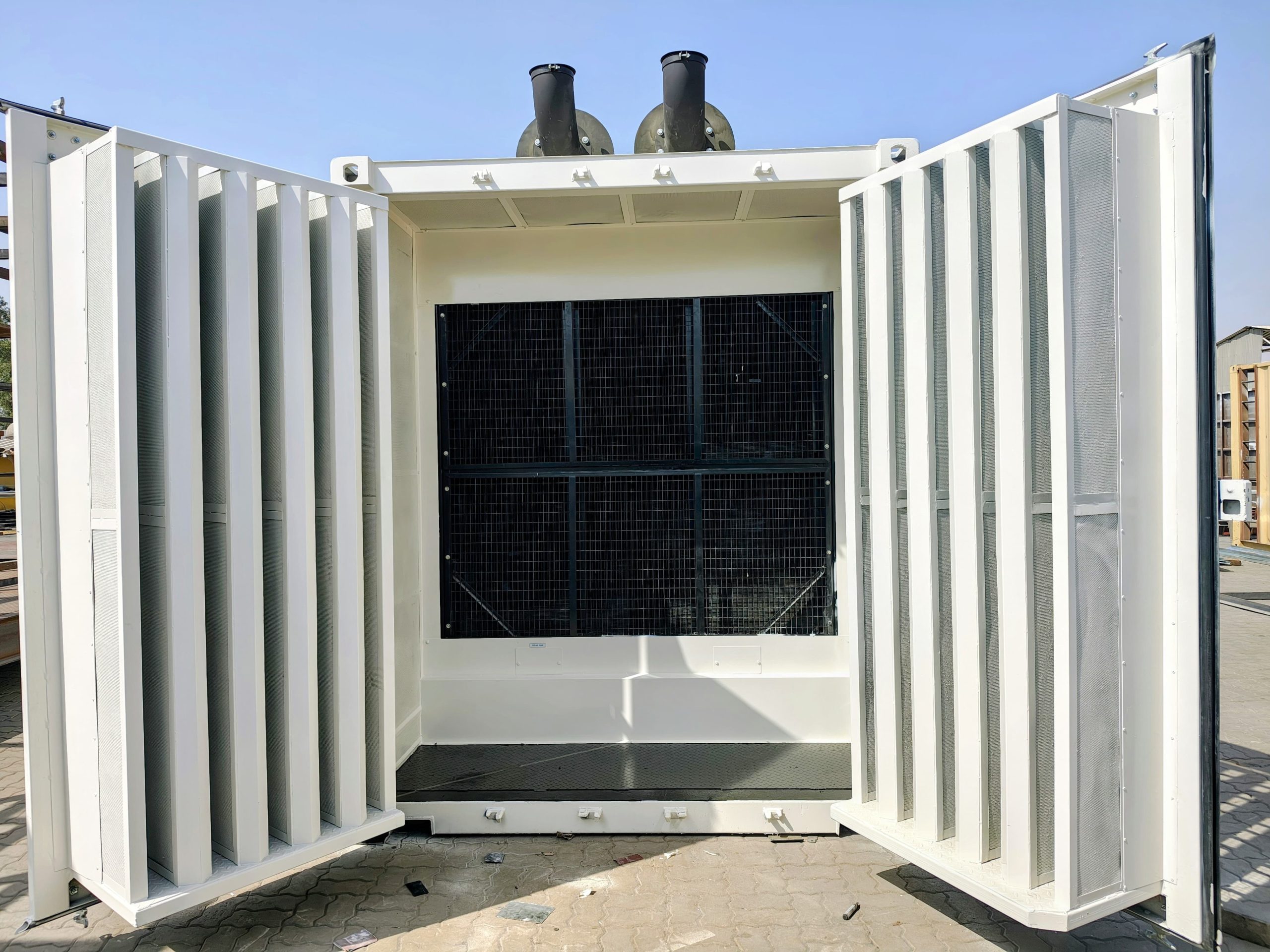

- Attenuated weatherproof door-type louvers for air discharge
Access & Safety:
- Panic-release door locks, stainless steel container hinges, and catchers
- Ladder for roof access and air filter repositioned for better maintenance access
Exhaust System:
- 2 No’s of MS residential-type mufflers mounted on the roof.
Electrical & Lighting:
- Internal lighting with 3 x 2x36W fluorescent fittings.
- Industrial socket (16A, 3-pin), metal DB box, 2-way gang switches, emergency push buttons, and Powder coated aluminum gland plate (4 mm) for cable entry
- Earthling boss provided at skid corners and cable outlet provision on side wall.
Paint Finish
- The container surface is further coated with an acrylic-based 2 coat paint system.
Applications
- Oil & gas field fuel systems
- Mobile power modules
- Chemical dosing or filtration units
- Pump skids for remote operations
- Utility support systems for drilling or rig sites
