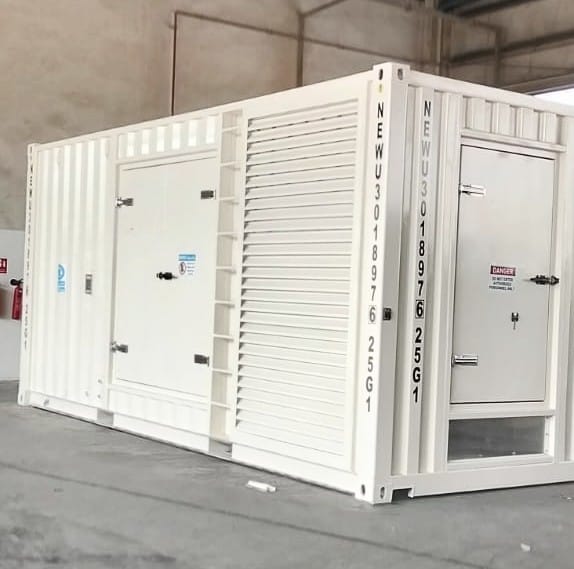

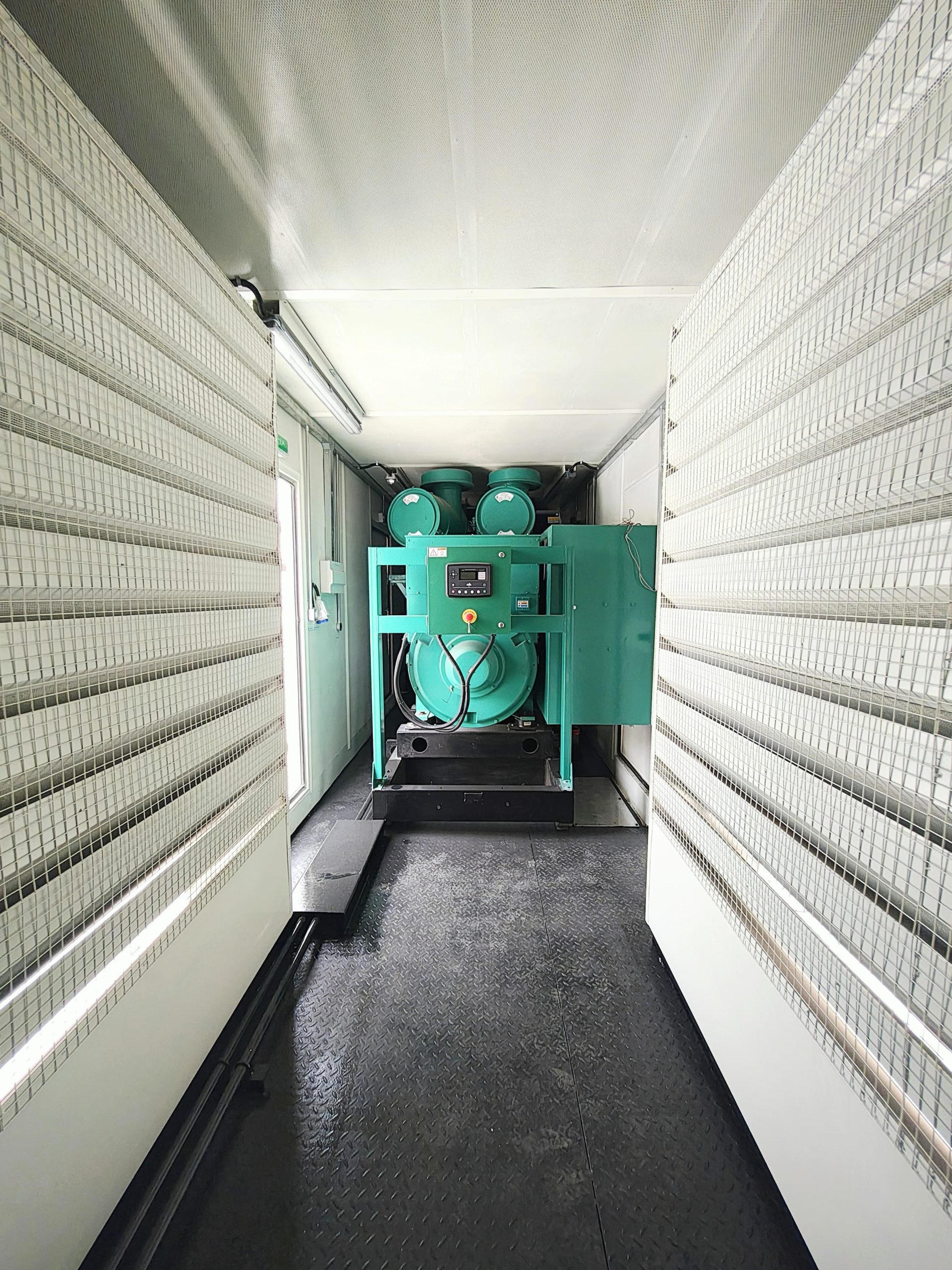

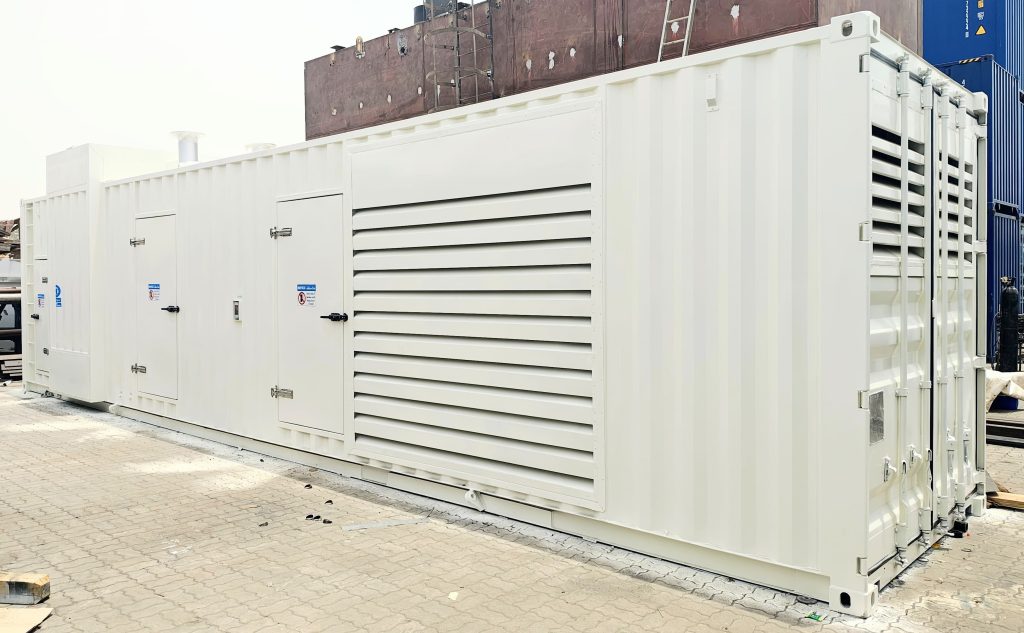

Design, Supply & Manufacturing of 40 Ft Customized ISO Container for 1500 kVA Genset
Key Features
- Noise level: 85 dB(A) @ 1 meters in a free-field environment
- Customized container design to accommodate oversized radiator width and height, ensuring structural integrity to withstand lifting loads
- Fully welded skid base with reinforced mounting

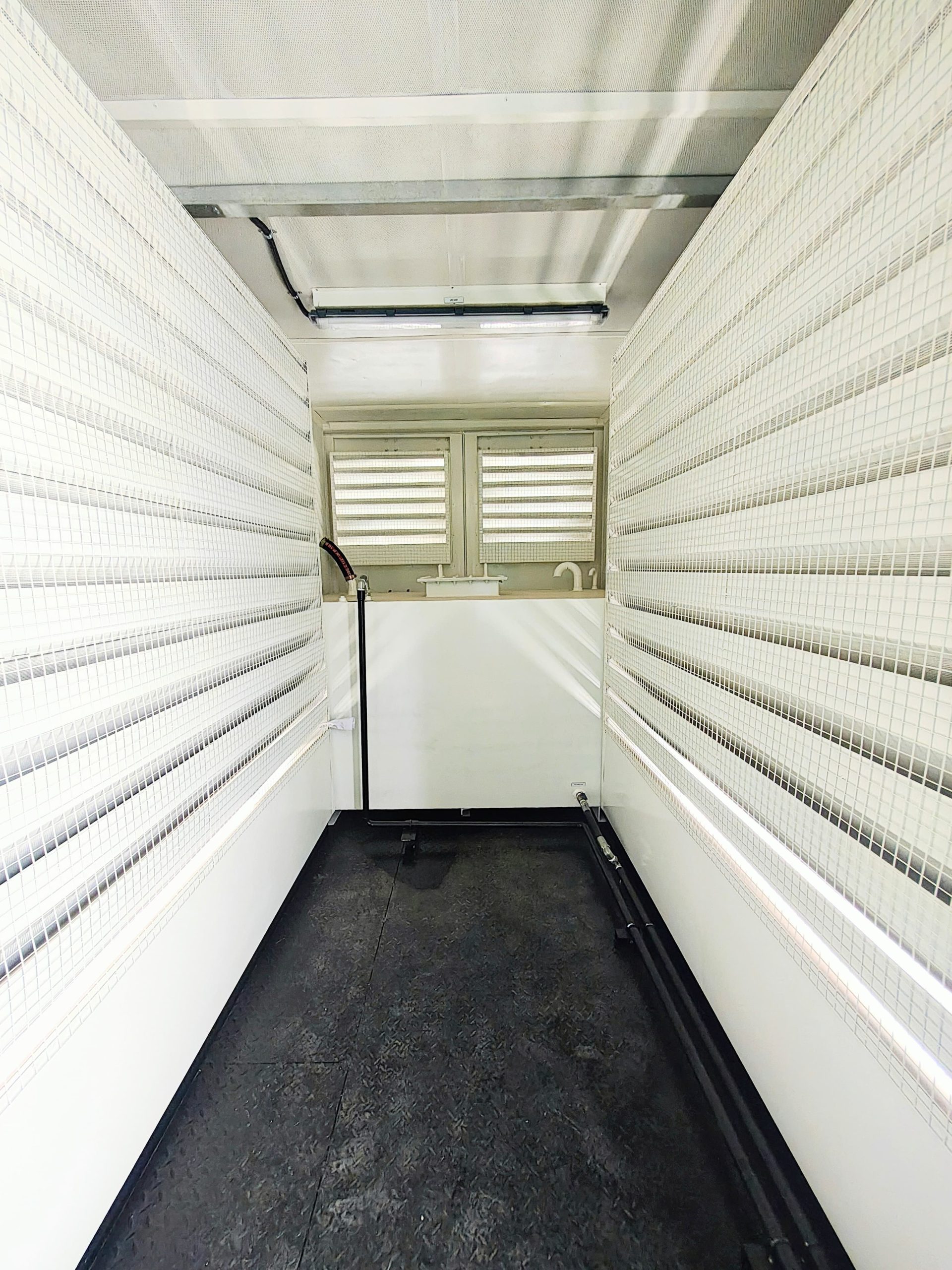

- Inlet & outlet acoustic louvers, radiator maintenance door, and access doors

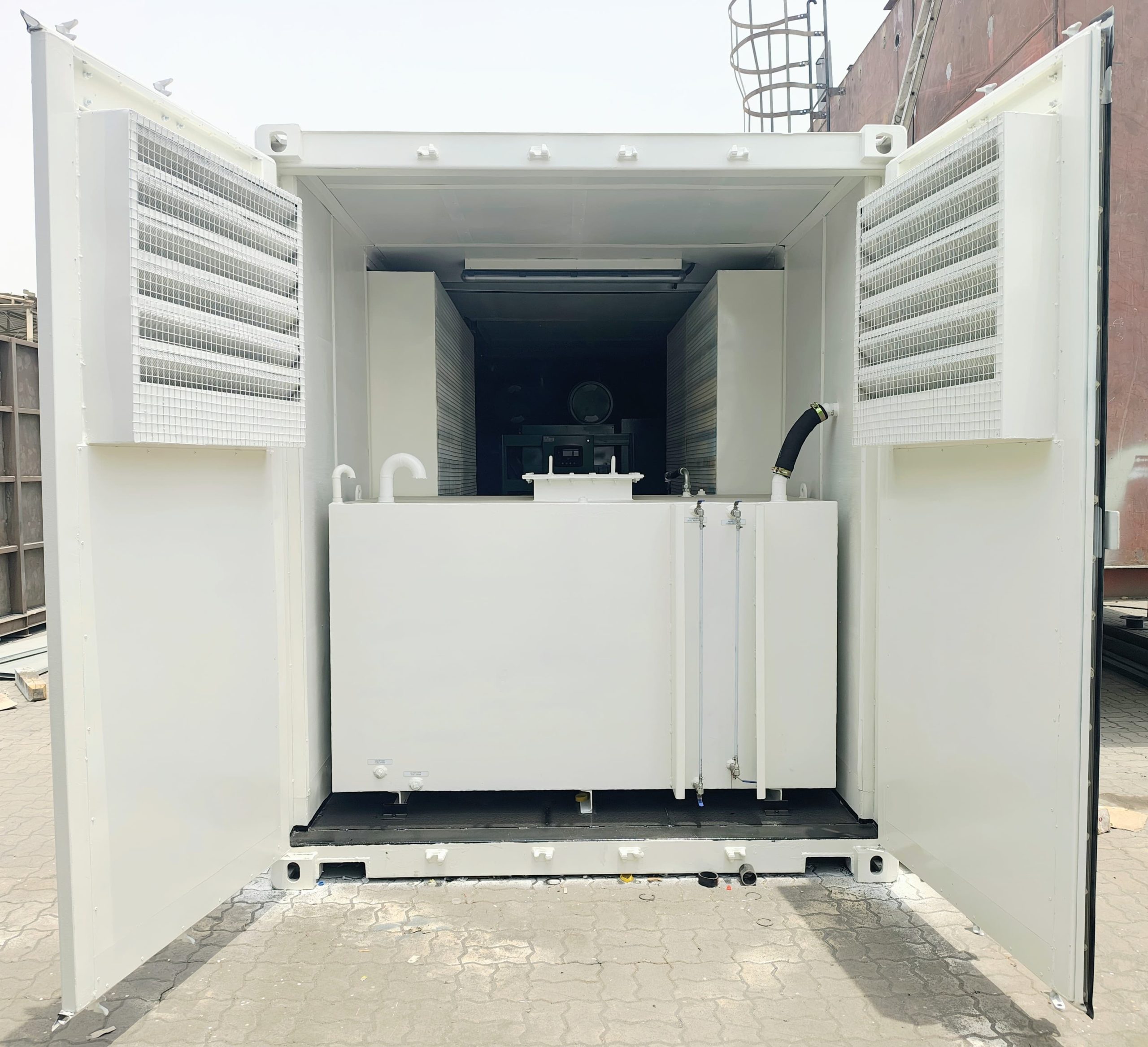

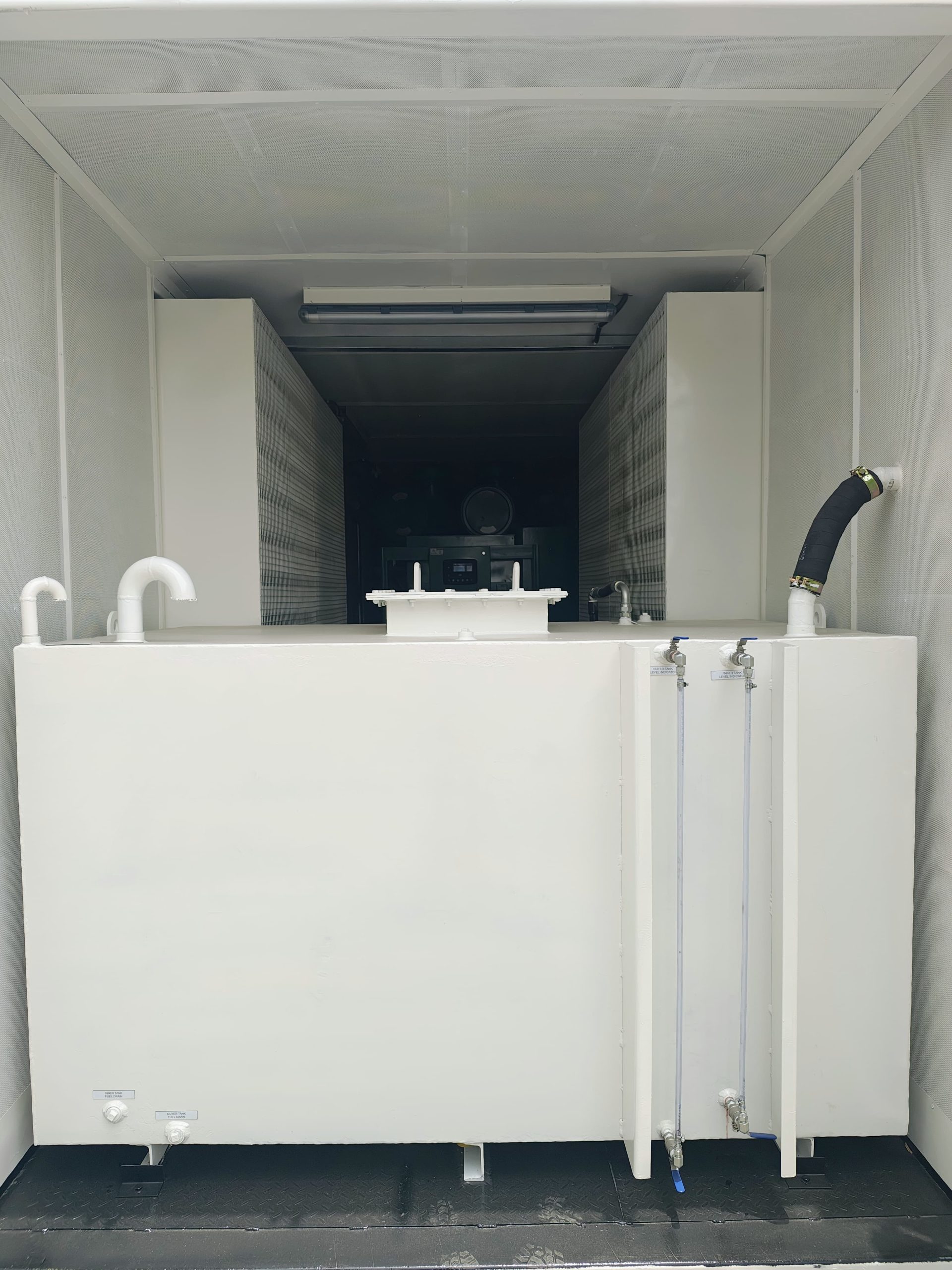

- 2,400-liter Double Wall fuel tank, with level instruments and fuel fill camlock arrangements
- Complete fuel piping between day fuel tank and engine
- Residential-grade muffler with thermal insulation jacket
- Finished with a three-coat acrylic-based painting system on mild steel and galvanized steel
- Dedicated compartments for breaker panel and generator control panel
- Power & control cabling between alternator and breaker panel
- Weatherproof light fittings, power sockets, emergency push button, and 2-gang 2-way switches
Applications
- Oil & gas field fuel systems
- Mobile power modules
- Chemical dosing or filtration units
- Pump skids for remote operations
- Utility support systems for drilling or rig sites
