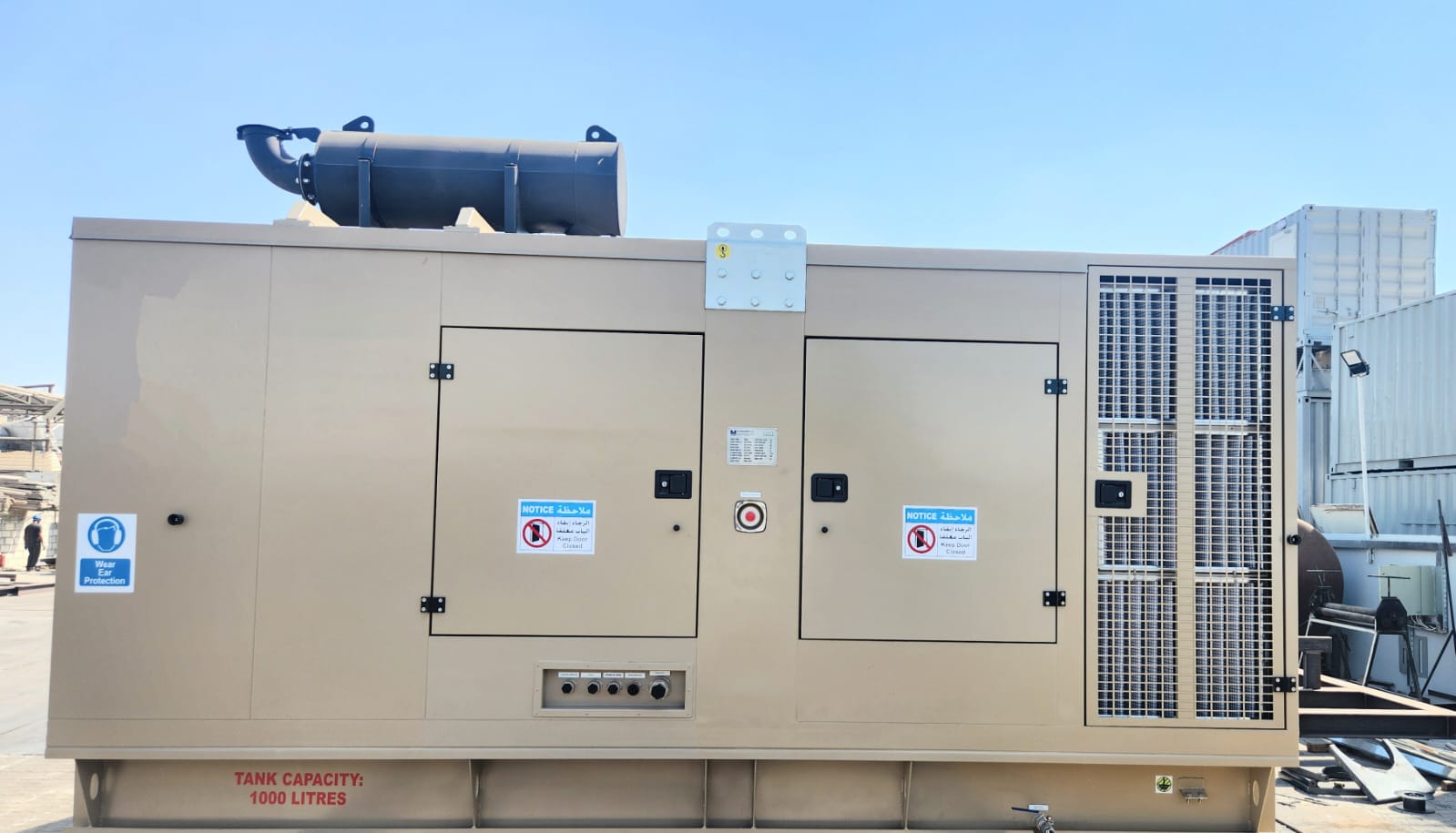

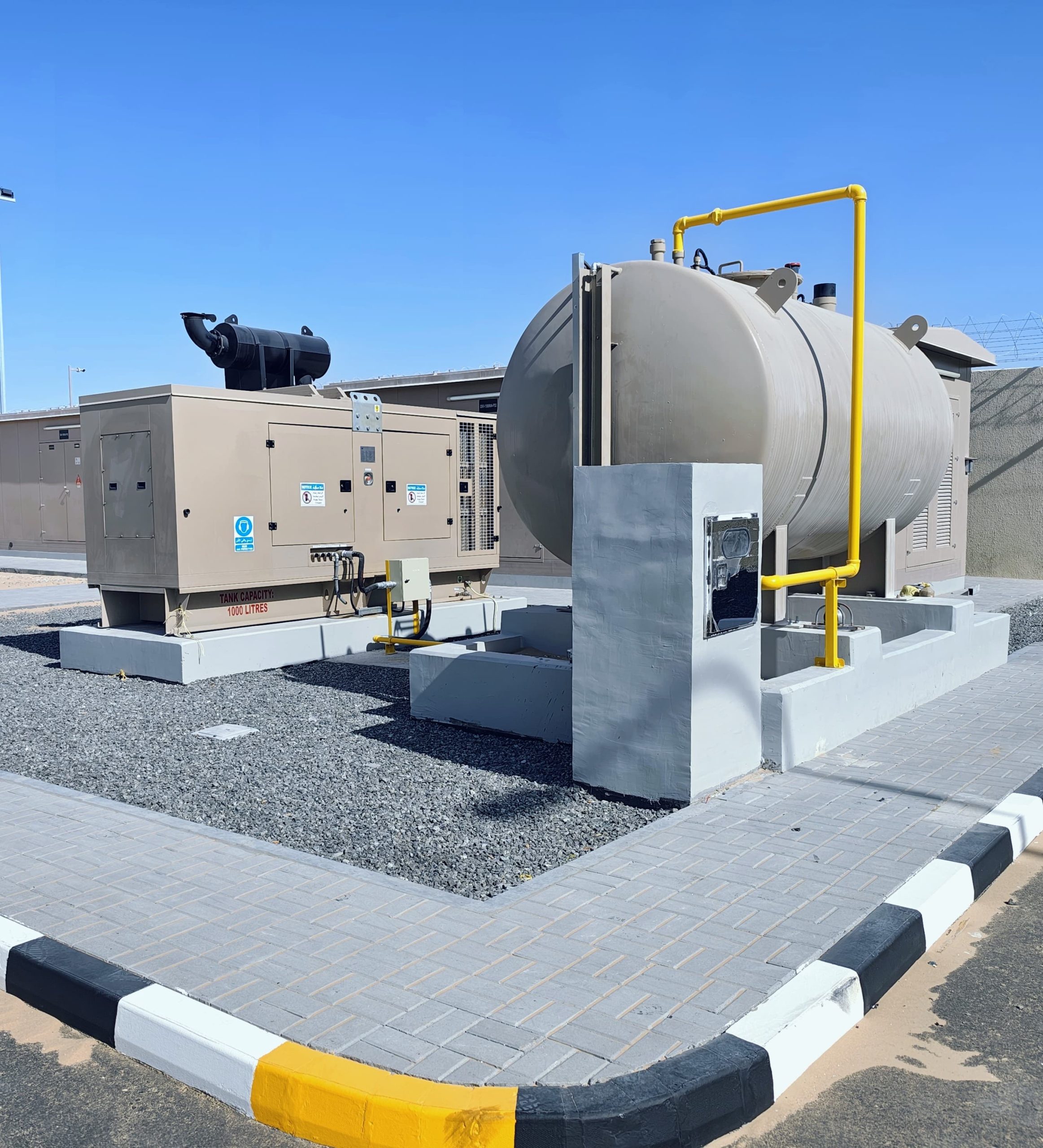

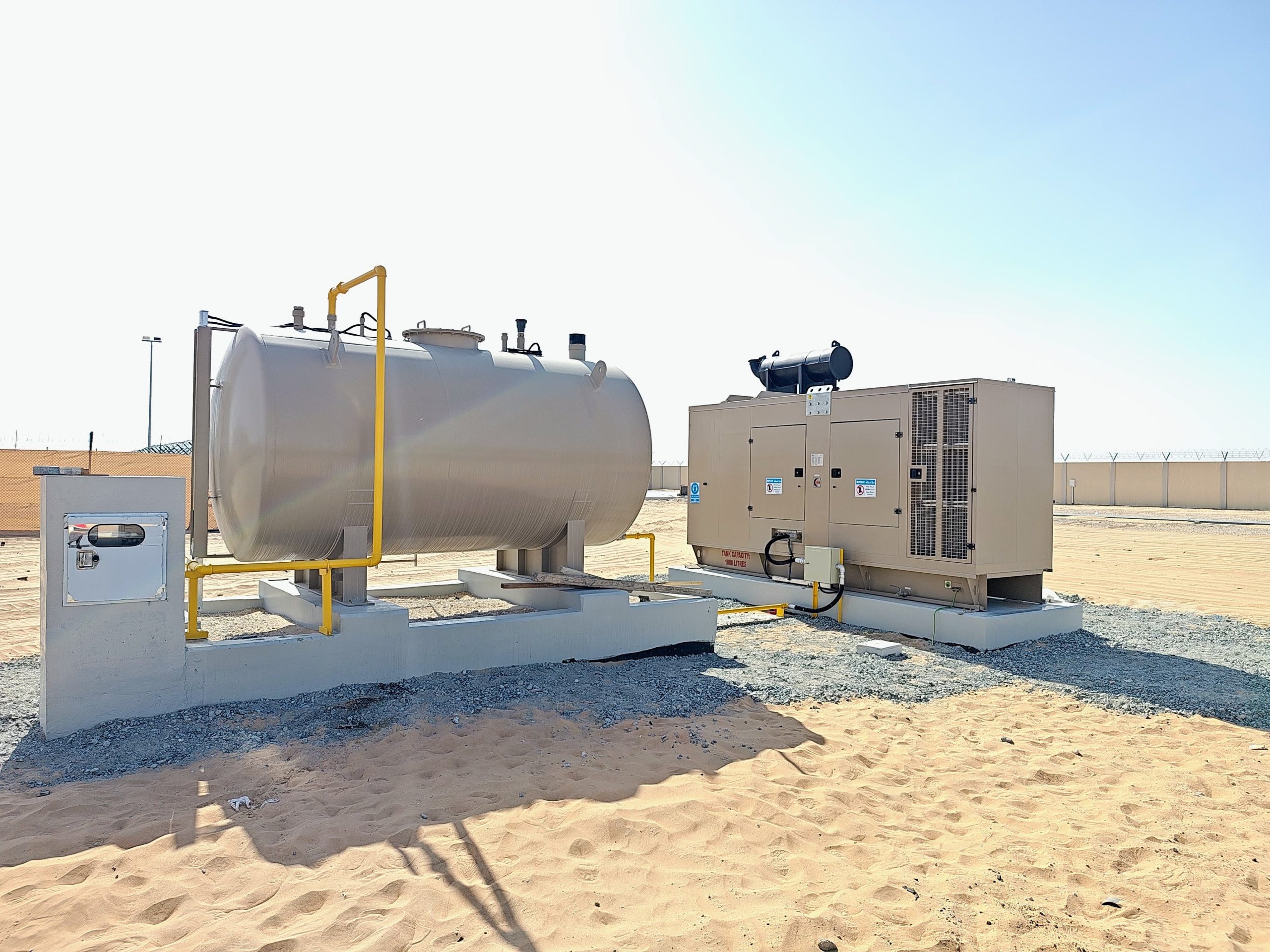

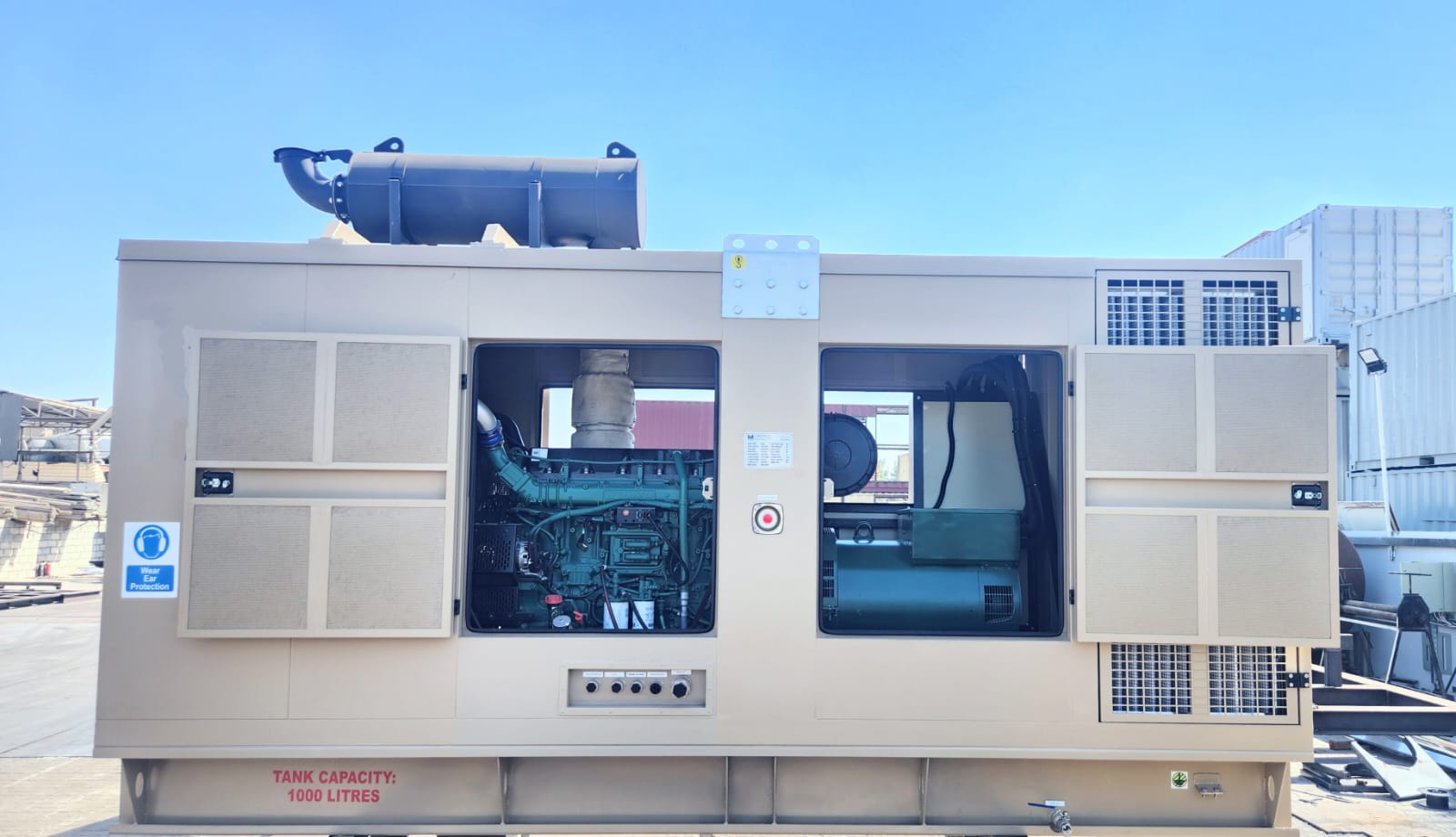

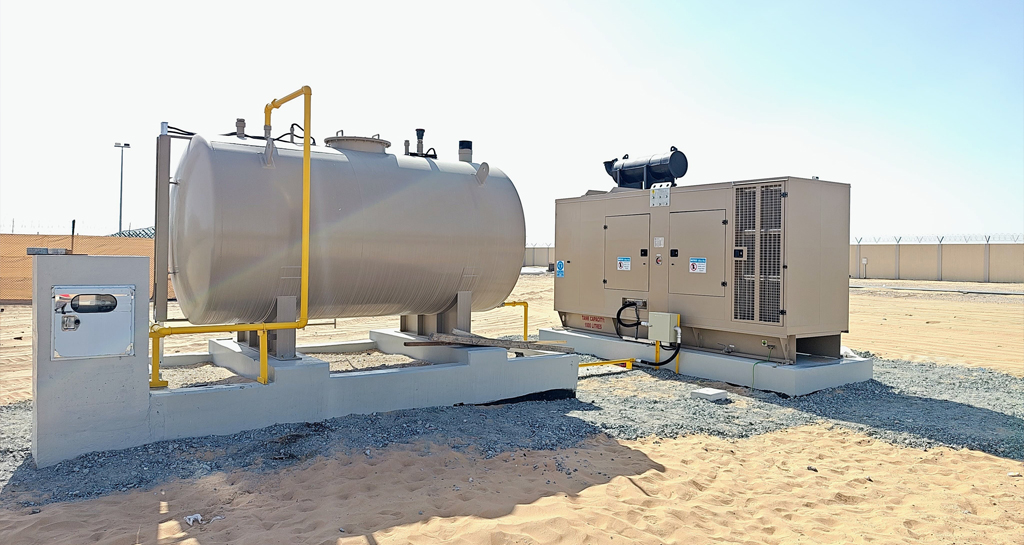

Design, Supply & Manufacturing of Drop over Canopy for 250KVA & 400KVA Gensets.
Key Features
- Noise Level 85dB @ 1 mtr in free field environment.
- Coupling of Engine & alternator on common base frame.
- Anti-Vibration mounting for Engine & Alternator mounting.
- Base skid extension.
- 400 Ltr Integrated base fuel tank.
- External diesel filling point with heavy duty cap. 2” manual fuel fill connection with camlock coupling
- Inlet Louvers with Sand Filters
- Radiator Maintenance door and Access Doors.
- C5M Marine Grade Painting System.
- SS Door Lock, SS Hinges.
- Residential Grade Muffler with Thermal insulation jacket 2 Point lifting arrangements.
- 400Amps, MCCB Breaker, 4P,50kA, 50 Hz, Manual Fixed type with suitable enclosure and bus bar.
- Supply & Installation of Power Cable from alternator to MCCB panel.
- Emergency push buttons on the local control panel box.
- Deep-Sea Controller (DSE 7320) control
- Supply & installation of 24VDC 20 Amps Battery charger.
- Battery isolator switch outside the canopy in a pocket.
- Maintenance free lead acid batteries with battery cables and stand.
Applications
- Oil & gas field fuel systems
- Mobile power modules
- Chemical dosing or filtration units
- Pump skids for remote operations
- Utility support systems for drilling or rig sites
