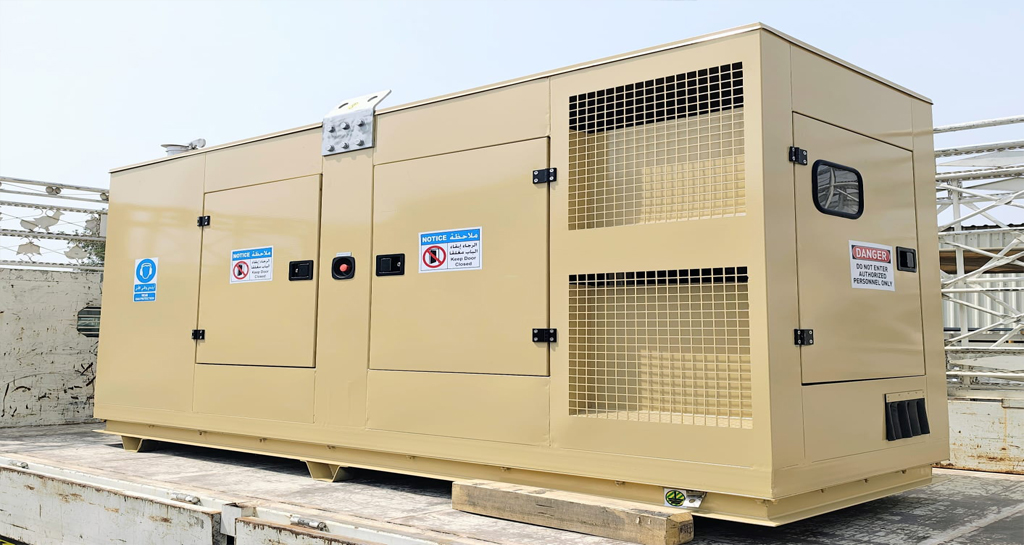

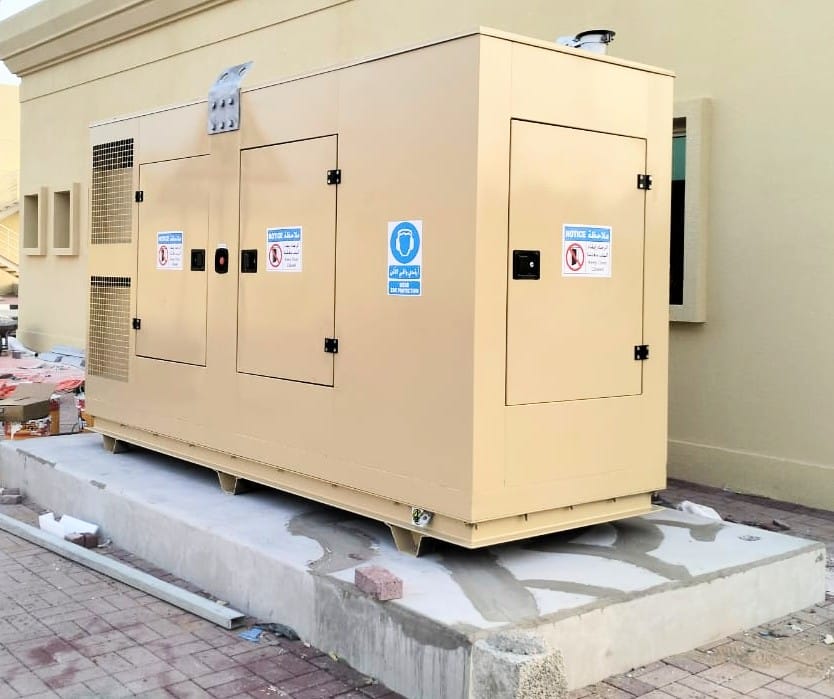

Drop over Canopy for 135KVA Gensets.
Key Features
- The panels shall be made of 1.5 mm thick GI sheet covered with 50 mm thick inner lining of rockwool of 48 kg/cum density and covered with 0.7 mm thick perforated GI sheet.
- Noise Level 85dB @ 7 mtr in free field environment.
- Customized drop over type of canopy with 2 Point Lifting arrangement
- Base skid extension.

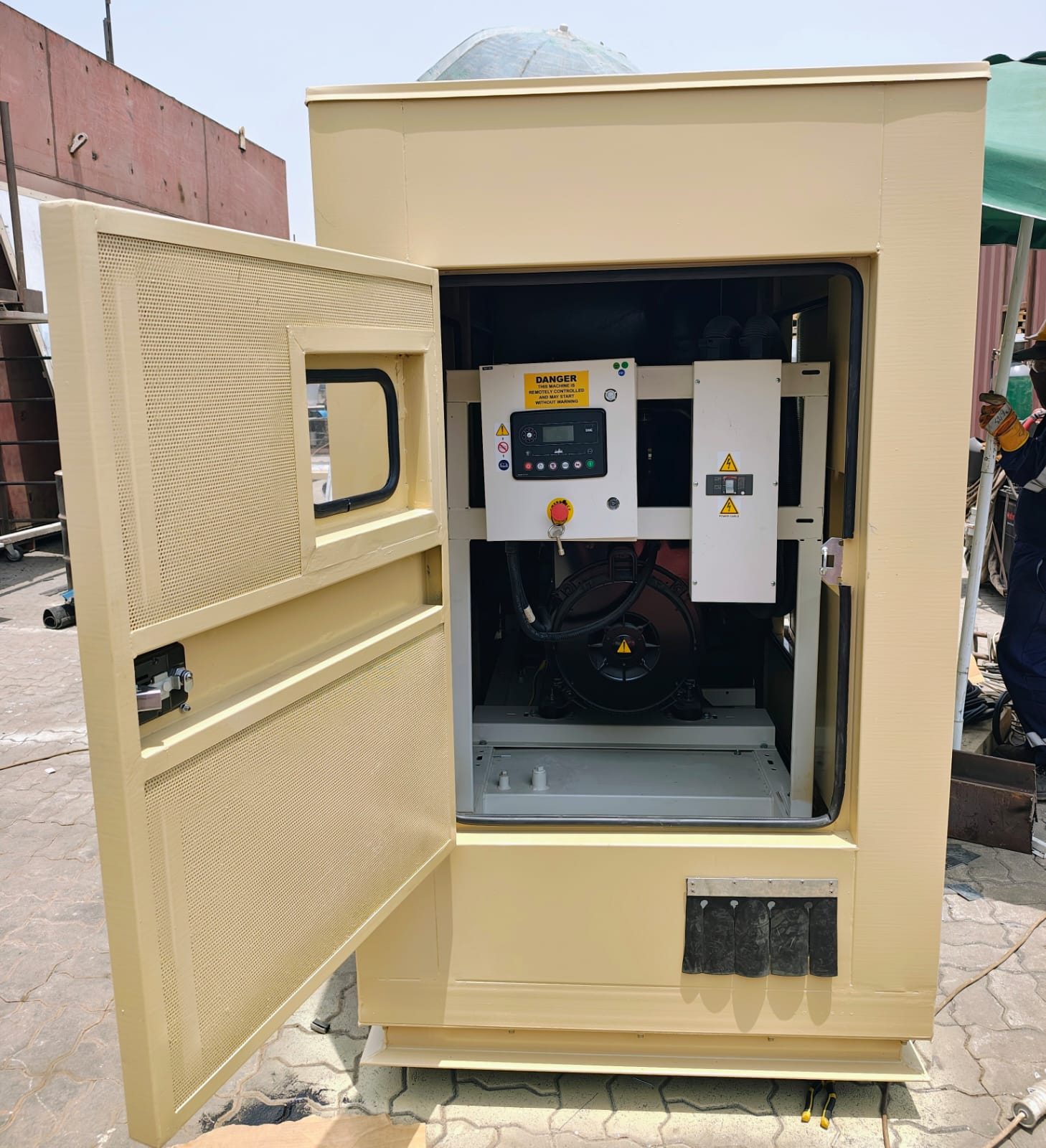

- Radiator Maintenance door and Control Panel Access Doors.
- C5M Marine Grade Painting System.
- Powder Coated Door Locks & Hinges.
- Residential Grade Muffler with Thermal insulation jacket.
- Emergency push buttons on the Drop over canopy.
Applications
- Oil & gas field fuel systems
- Mobile power modules
- Chemical dosing or filtration units
- Pump skids for remote operations
- Utility support systems for drilling or rig sites
